ASTERISK CARDS
AX1D
|
|
|

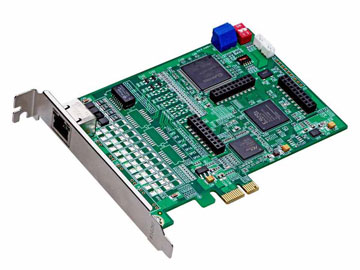

AX1D Asterisk card is the telephony PCI card which supports one ISDN PRI E1/T1/J1 ports, optional with teleco-grade hardware echo cancellation. Using AX1D digital PRI card, open source Asterisk PBX and stand alone PC, users can create their IP PBX telephony solution which include all the sophisticated features of traditional PBX, and extend features such as voicemail in IP PBX.
|
|
|
|
FEATURES
SPECIFICATIONS
DOWNLOADS
 |
One ISDN PRI E1/T1/J1 port |
 |
Support Asterisk, Freeswitch |
 |
Support Elastix directly |
 |
Support Trixbox, AsteriskNOW, PBX in a Flash by reinstalling Dahdi |
 |
Supports standard telephony and data protocols(Including PRI, CAS, CCS for voice and PPP, HDLC, Cisco HDLC and Frame Relay for data modes) |
 |
Supports chan_ss7 and Openr2 |
 |
Optional hardware echo cancellation |
 |
3.3V or 5V PCI 2.2 slot |
 |
ISDN PRI IP PBX
ISDN least cost router
Calling Card Platforms
IVR system
Call Center
Traditional Calls/VoIP Calls Conference
VoIP Gateway
Callback Service |
 |
Elastix certified |
Voice Modes
Pri CPE and PRI NET:
EuroISDN
4ESS(AT&T)
5ESS(Lucent)
DMS100
Hardware Requirement
1.6-Ghz Pentium IV
512 MB RAM
3.3V or 5V PCI 2.2 slot
PCI Card Dimension
131.5mm (Length)*94mm (height)
Operating System
Linux (all versions, releases and distributions from 1.0 up)
|
